مركز تصنيع 5 محاور

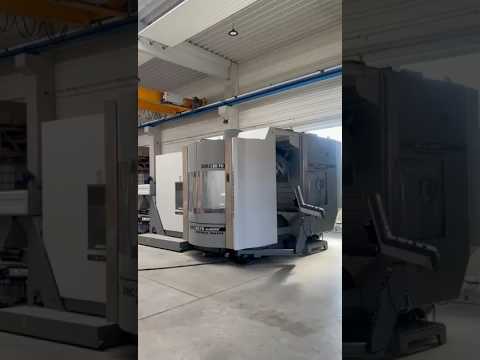

DMG DMG DMC 80 FD duoBLOCK

_____

Description:
Year of manuf. : 2008
Control : Siemens 840
Speed : 8000 rpm
Movement X/Y/Z : 800/800/800 mm
Tool holder : HSK 100

In General:
Year of manufacture:2008
Speed:8,000 rpm
Tool holder:HSK 100
Control system:Siemens 840 D
Travel X/Y/Z:800/800/800 mm
Table speed:700 rpm

Spindle:
Technology:Geared spindle
Speed:8,000 rpm
Isdpfx Aswx A Hqof Hsal
Max. power:28 kW
Max. torque:727 Nm
Tool holder:HSK-100
Turning function:Spindle clamping

NC swivel head:
Technology:Universal milling head
B-axis:0.001°

NC- Millturn table:
Max. speed:700 rpm
Clamping surface:800 x 630 mm
Max. table load:800 kg

Tool magazin:
Technology:Chain magazine
Number of stations:120
Tool changer:Double gripper

Equipment:
Chip disposal:Chip conveyor
Coolant supply:IKZ system, 80 bar
Coolant temperature control:Immersion cooler
Position measuring systems:Direct in all axes
Automation:2-fold pallet changer
Turning function:Spindle clamping + rotary table
Workpiece measurement:Preparation for measuring probe
Process monitoring:Operating mode 4
Set-up mode:Electronic handwheel
Emulsion mist separator:Mechanical separator
