مخرطة CNC

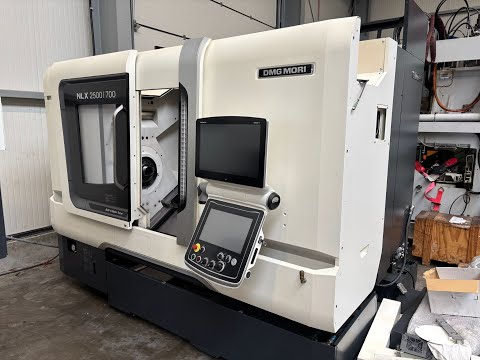

DMG MORI NLX 2500 Y | 700

turning diameter 366 mm
turning length 700 mm
control Celos Mitsubishi M730U
turning diameter over bed 920 mm
turning diameter over cross slideways 742 mm
max. turning speeds 4.000 min/-1
drive capacity - main spindle 18,5/18,5/15 kW
max. rod diameter 80 mm
number of tool places 12 Pos.
tool taper BMT 80
x-axis 260 mm
z-axis 795 mm
y-axis +/- 50 mm mm
tailstock taper MT5
Number of working hours ca. 20.564 h
auto power on hours ca. 28.664 h
weight of the machine ca. 4,7 t
The machine has been overhauled with the following components:
- Ball screws in the X, Y, and Z axes
- New main spindle
- Complete maintenance package
- Recalibrated and recalibrated
This puts the machine in like-new technical condition.

Technical Features:
- 12-position BMT 80 tool turret, max. speed 10,000 rpm, 5.5/5.5/3.7 kW
- Y-axis
- Overhang for driven tools 100 mm
- Scraper-belt chip conveyor
- Coolant system with increased pressure of 5 bar

Accessories:
- Coolant shower on the main spindle chuck
- Compressed air blow-off system for tool cutting edges
- Line filter for coolant system
- Compressed air blow-off system for tailstock center
Chodpfx Agewgwnlj Sec
- Mechanical I/F for 150 mm oil mist separator
- 4-color signal light
- EtherNET I/P interface for automation

Accessories, tools, and clamping devices shown are only included in the scope of delivery
if noted in the additional information.

Subject to changes and errors in the technical data and information, as well as
subject to prior sale!
