Constmach Jaw Crusher Hard stone crushing machine 50-1000 t/h

CONSTMACH jaw crushers are designed to offer high durability and superior crushing performance, making them ideal machines for primary crushing operations in quarries and mines. They have the capacity to process a wide range of materials, from the softest limestone to the hardest types of granite and basalt. Their robust construction, high flywheel torque, and special jaw geometry ensure high-efficiency crushing of material into uniform sizes. The advanced hydraulic adjustment mechanism allows for easy adjustment of the desired output size and minimizes operator intervention.

CONSTMACH jaw crushers ensure long-lasting use with their forged chrome-nickel steel pitman structure, heavy-duty bearings, and automatic lubrication systems. The welded main frame, which has undergone thermal stress relief treatment, maintains maximum durability even under high vibration. The user-friendly maintenance design provides an uninterrupted and safe working environment during production processes. These machines can be integrated into stationary or mobile crushing plants, offering high flexibility for projects.

CJC-60 Technical Specifications
Mouth Size: 600 x 380 mm
Motor Power: 30 kW
Shaft Speed: 330 rpm
Weight: 6,000 kg
Min./Max. Adjustment: 30 - 100 mm
Production Capacity: 60 - 110 t/h

CJC-90 Technical Specifications

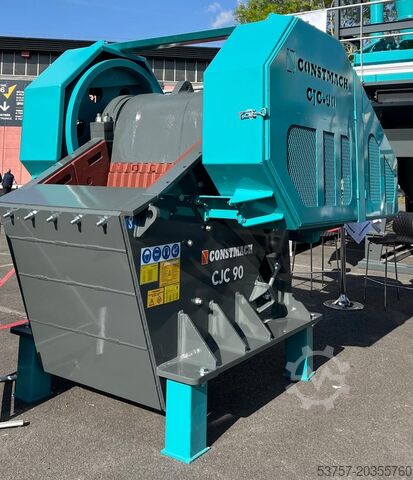

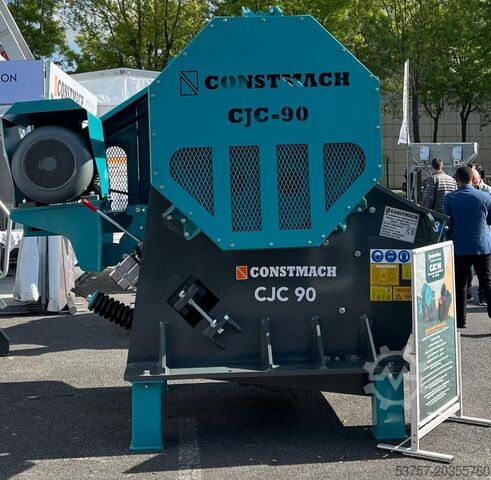

Mouth Size: 900 x 650 mm
Motor Power: 75 kW
Shaft Speed: 277 rpm
Weight: 11,400 kg
Min./Max. Adjustment: 50 - 150 mm
Production Capacity: 90 - 270 t/h

CJC-110 Technical Specifications
Mouth Size: 1,100 x 850 mm
Motor Power: 132 kW
Shaft Speed: 230 rpm
Weight: 33,000 kg
Min./Max. Setting: 60 - 200 mm
Production Capacity: 150 - 420 t/h

CJC-130 Technical Specifications
Jaw Opening: 1,300 x 1,000 mm
Motor Power: 160 kW
Shaft Speed: 220 rpm
Weight: 42,500 kg
Min./Max. Adjustment: 100 - 280 mm
Production Capacity: 275 - 790 t/h

CJC-140 Technical Specifications
Jaw Size: 1,400 x 1,100 mm
Motor Power: 200 kW
Shaft Speed: 220 rpm
Weight: 52,000 kg
Kjdpfxexqhzus Aipelu
Min./Max. Adjustment: 120 - 280 mm
Production Capacity: 420 - 850 t/h

Why Choose CONSTMACH Jaw Crushers

CONSTMACH is a symbol of quality and reliability in crushing and screening technologies. Each jaw crusher model undergoes production processes that comply with international standards, ensuring maximum performance, low operating costs, and a long service life. With customizable design options tailored to customer needs and an extensive service network, it supports your business's uninterrupted production goals. In terms of reliable performance, engineering quality, and after-sales technical support, CONSTMACH is the right choice for crushing systems.
