Colchester Master VS 3250

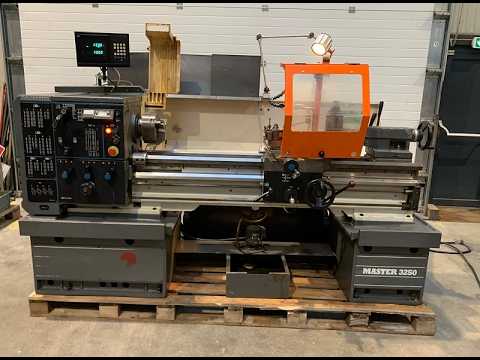

Parallel Lathe COLCHESTER MASTER VS 3250
Bdodpfx Aoz Df S Uspboi
Year of construction: 1996
Between points: 1250 mm
Max diameter in front of bench: Ø 340 mm
Maxi diameter over saddle Ø 160 mm
Centre height: 170 mm
Spindle diameter: Ø 42 mm
Spindle speed: from 20 to 3250 RPM
3-jaws chuck Ø 200 mm
Turret Mutifix B
Threading: Metric + Withworth
3-points steady
Tailstock CM4
Scale WIZARD 150 PLUS
Longitudinal + transversal auto feeds
Spindle speed by electric drive
Lubricant pump
Voltage: 380 V
Dimensions (L x W x H): 2600 x 1400 x 1700 mm
Weight: approx 2 T
