Citizen K16 VIP – مخرطة أتوماتيكية سويسرية

Citizen K16 VIP

General data:

• Year of manufacture: 11/2006
• Serial number: K00447
• Manufacturer: Citizen Machinery Co., Ltd. (Miyota Nagano, Japan)
• Machine weight: 1,950 kg

Overall dimensions:
• Width: 1,610 mm
• Depth: 1,850 mm
• Height: 1,050 mm

Technical data:
• Max. bar diameter: 16 mm
• Max. turning length: 200 mm
• Main spindle speed: 15,000 rpm (2.2 / 3.7 kW)
• Counter spindle speed: 10,000 rpm (0.55 / 1.1 kW)
• Control: Fanuc Series 31i
• Number of axes: X1, Y1, Z1, Z2, C1, C2
• Full C axis on both spindles
• High pressure pump 20 bar, 2-channel

Tool configuration:

Front tool post:
• T1–T5 – fixed tools
• T11–T14 – driven tools (radial or axial)

Tool holder:
• T21–T24 – fixed tools for work on the main spindle
• T31–T34 – fixed tools for work on the counter spindle

Equipment:
• IEMCA Genius 118 Type 37 LL bar feeder (year of manufacture 2007, serial number 020704BA04)
• Guide bushings (complete set)
• Fixed and driven tooling
• High-pressure pump 20 bar / 2 channels

The set also includes a large set of guide bushings (GB) and bushings for the IEMCA feeder in various diameters – visible in the photos.

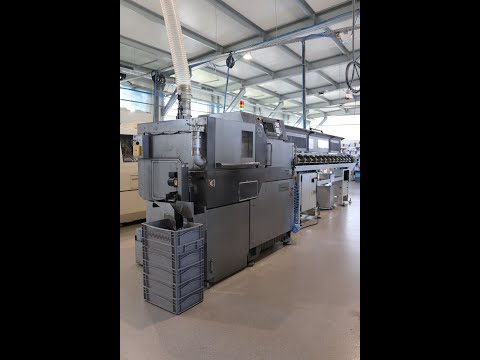

The photos show the complete set of tools for two identical machines that we sell.

Bedpoymzbujfx Ad Rewi
• when purchasing both machines – we provide the entire set of bushings
• when purchasing one machine – the tooling will be divided between the machines

Technical condition:

The machine is in very good technical condition, fully operational, ready for use.
Regularly serviced and used in precision manufacturing.

Additional information:
• Nameplate: type K16 VIP, serial number K00446, date of manufacture 11/2006, weight 1,950 kg.
• Possibility of demonstrating the machine under voltage.
