BERGER technologie MEGA-POINT / blue-line LIGHT

Standard equipment red line

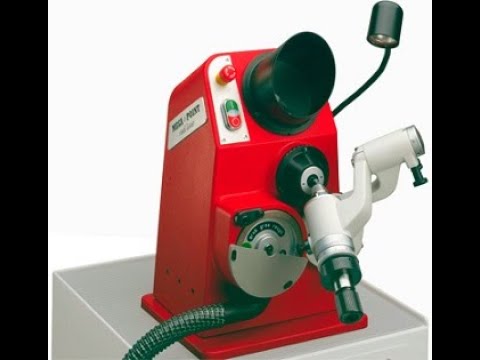

Optical precisions drill point grinding machine for 2 fluted drills
Laodpsbrpr Uefx Ag Rsc
regrinding and point splitting in one chucking
diameter range 2 to 16 mm (1 to 20 mm as option)
point angle 80° - 150° infinitely adjustable
cutting angle 0° - 20° infinitely adjustable relief angle set to 30°
incl. complete electrical instalation with single phase electrical motor 0,3KW 115V 60Hz (or 220V 50Hz)
and integrated power-supply for illumination of the optical system
incl. built-in optical projection system with 10 power lens
(zoom lens with 6 - 20 power as option)
incl. integrated point splitting device
incl. one precision collet holder and one set of double-tapered precision-collets of your choice
(MP 16 for drill-dia. 3-16 mm, MP 6,5 for drill-dia. 1-6.5 mm or MP 20 for drill-dia. 6.5-20 mm)
incl. 1 double sided grinding wheel dia. 125mm CBN (one side coarse [grit ~100] second side medium [grit ~200])
incl. wheel guard with connection system for vacum cleaner
incl. 1 each of detailed operating manual with pictures, spare parts list, CD-Rom and CE-Declaration (on demand)
