خط تصنيع وتعبئة المناديل المبللة

AMTEC WTIS HFFS 60 LID

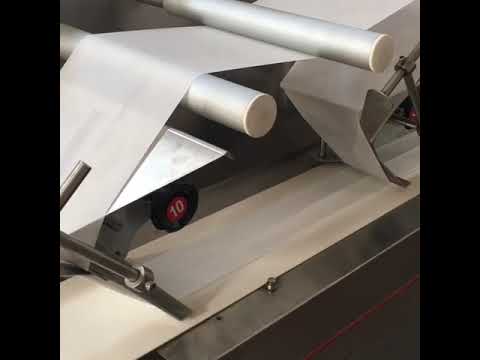

Packaging line for the production and packaging of wet wipes, e.g. hygiene wipes, cleaning wipes, baby wipes, disinfecting wipes. The line is constructed from a wet wipe production unit, a flow wrap unit and a unit for applying the reclosable lid. Wet wipes production process: Unwinding of the nonwoven from 2 jumbo rolls and slitting into 5 lanes per roll (until moistening) for a fast production method, longitudinal folding in Z or C-shape, moistening via several spraying nozzles, cross cutting (wipes length), stacking and forwarding to the packaging unit. The flow wrapping unit handles: feeding the wet wipes, feeding the film and printing (hot stamping), hole punching (to open the pack), positioning the reclosable label and e.g. a seal label (the integrated 2-lane labeler allows offset labeling), bag cutting/heat sealing and feeding to the lidding unit. The liquid supply system for moistening the wipes consists of 2 tanks with continuously mixing agitators and a liquid recycle unit. - Specifications: suitable for dry nonwovens (airlaid, spunlaid); folds: Z or C shape (change of folding tool necessary); fold face adjustable per side; dimensions of folded tissue: L(120-220)xW(90-110) mm; dimensions of unfolded tissue: L(120-220)xW(150-220) mm; number of wet wipes per pack (min. to max.): 30-120 pieces; grammage wet wipe: 40-80g/m²; speed of the machine in neutral: max. 5600 wipes/minute or max. 60 packs/minute; bag size: depending on folding dimensions and number of wipes per pack; film roll dimensions: width max. 360 mm, diameter: max. 400 mm; suitable films: OPP film (transparent, printed or laminated); nonwoven jumbo roll dimensions: width 800-1320 mm, diameter max. 1200 mm; label roll dimensions: width max. 60 mm, diameter max. 300 mm; lid dimensions: Width max. 80mm, length max. 120mm; dimensions tank for liquid: 900x900x1900mm; dimensions packing line: L16273xW5404xH2350 mm; total weight: about 12000kg; power: 27kW, 380V, 3-phase. The photo only shows the main machine (wet wipes production). Gladly we will send pictures of the packaging and lid closing unit on request.

Please note that our new prices are often below the usual used prices. Please feel free to inquire and tell us your packaging task. - Usually 30-50 different new machines are available immediately from stock. In addition, we have very short delivery times from approx. 3 weeks for customized machines. Deviations from the sample photo are possible. - All machines are available with full warranty.
