ALZMETALL AB 3 ES

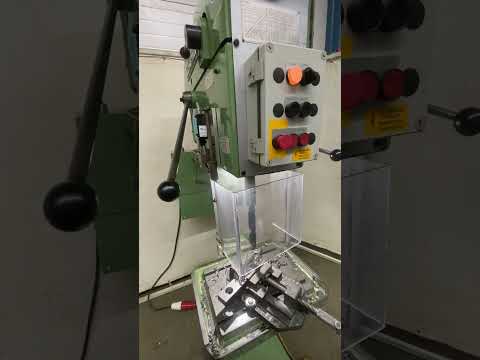

Column Drilling Machine ALZMETALL Type AB 3 ES
Machine No. 21703 Year of manufacture: 1981
Drilling capacity: 32 mm
Spindle taper: MK 3 - long quill
Throat depth: 290 mm
Quill stroke: 160 mm
Table size: 510 x 300 mm
Kedpfx Afjvu Dv Hepedw
Column diameter: 115 mm
Spindle speed: 55 - 1450 rpm, stepless
Motor power: 0.9 and 1.3 kW, pole-changeable
- Spindle speed via 2 gearbox stages, 2 motor speeds, and stepless through variator gearbox
- Intermediate gear stage for high torque at low speeds
- RPM counter for spindle speed
- Table height adjustable by handwheel
- Machine lamp
- Emergency stop via foot switch and kick switch
- Quick-action drill chuck 1 to 13 mm
Space requirement L x W x H: 1200 x 650 x 1900 mm
Weight: 400 kg
Very good condition
Machine tested with 30 mm drill diameter in steel - runs very well
